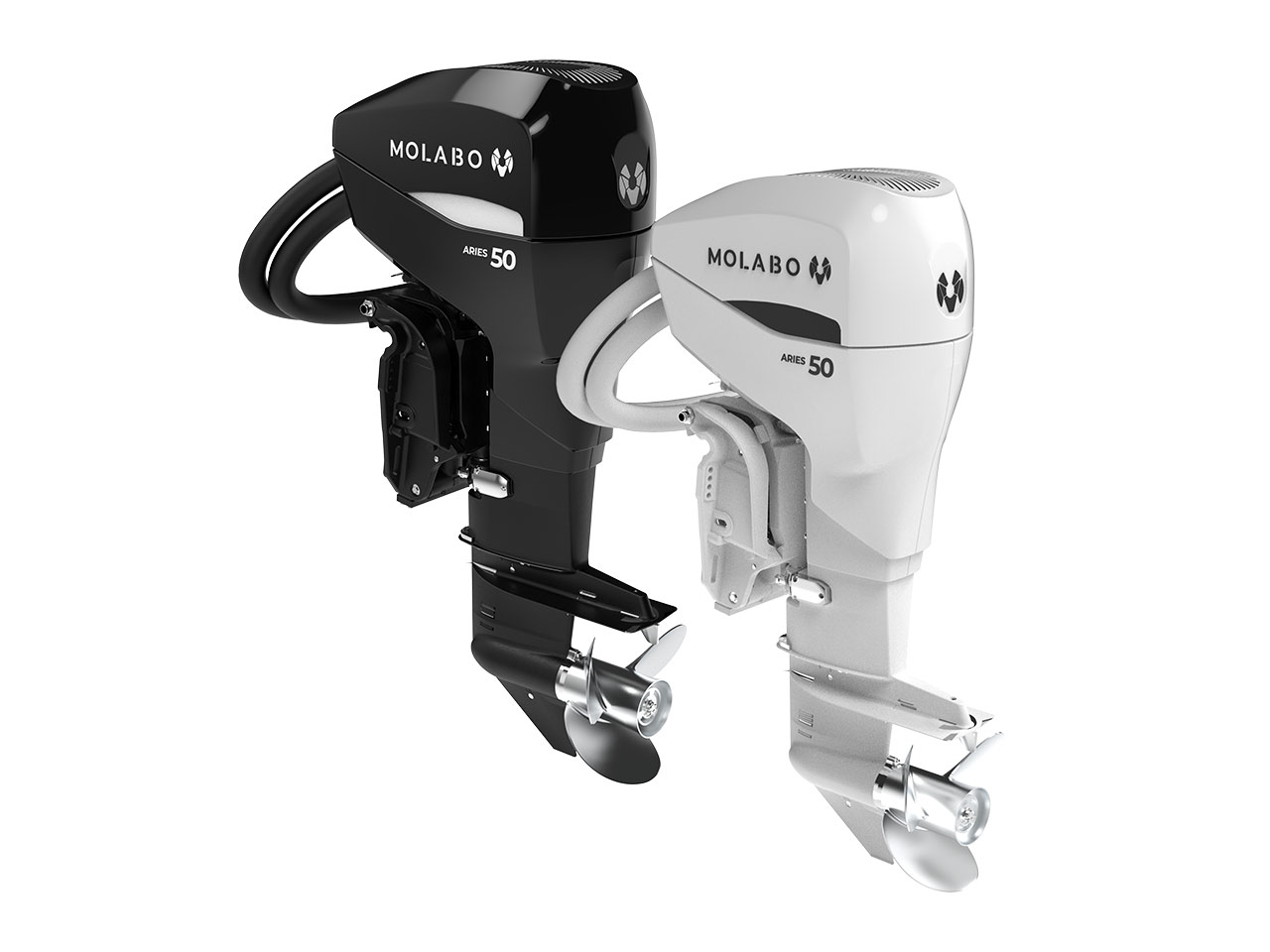

Molabo Aries R50 50KW 48V Electric Outboard Motor
We are delighted to be the UK dealers for Molabo Aries 50Kw electric outboard motor with patented ISCAD drive technology.
This outboard adds to our range electric outboards that starts at 550w ( for boat tenders) to 50Kw for commercial and leisure boats.
Like the Molabo electric inboards this engine is designed and manufactured in Germany and comes in Long and extra-long lengths.
Features summery
- 48v so can be installed by virtually anyone
- Made in Germany
- Patented ISCAD technology
- Dame award winner 2024 for new electric Motors
- Propellor shaft Torque of 270 Nm
- Trim and tilt
- Max drive efficiency 95%
- Designed to move boats up to 50 tons
ISCAD technology

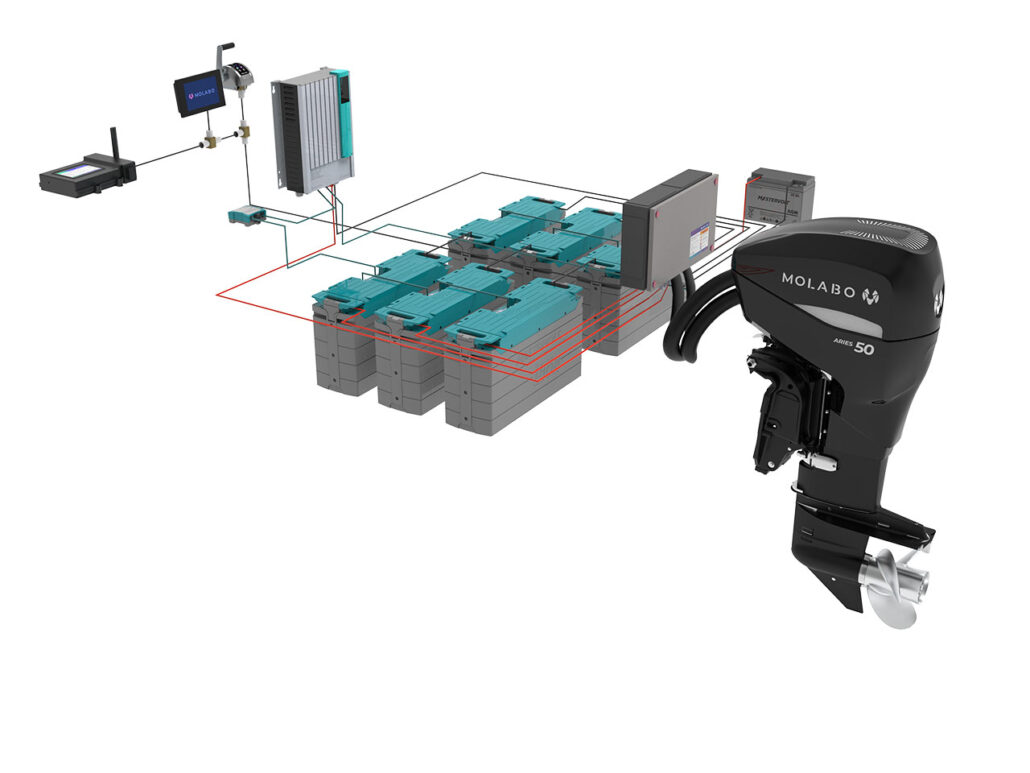

The core of the innovative Intelligent Stator Cage Drive (ISCAD) technology is the new stator of the electric motor. Instead of complicated windings, simple rods are used which form a kind of cage. This makes the ISCAD technology a highly parallel system from the battery to the motor. Multiple bars make it possible to handle the high currents on the AC side, which are necessary for very high power at 48 V, to be distributed over many phases.
The ARIES 50, due to its low induced voltage, uses low-voltage semiconductors that operate more efficiently under partial load compared to high-voltage components, resulting in battery protection and reduced operating costs. With the innovative stator cage technology, ARIES 50 offers a unique riding experience through powerful and silent acceleration.
Who we believe this engine is designed for
Though there are many applications for this 50ok electric outboard there are a few key markets that this is perfect for including
Creel / fishing boats
If you are a typical creel boat user and want speed to get out to your pots as well as minimal servicing compared to ICE engines (internal combustion engines) then this is a very cost effective option with low TCO ( total cost of ownership ) due to far less moving parts ie less to go wrong!
Displacement boats
Like many electric engines the Molabo Aries 50Kw engine is perfect for moving heavy displacement boats up to 50 tons. With up to 95% efficiency, quick installation and high reliability due to very few moving parts.
Commercial Operations
This engine is a great fit for commercial operations due to the increased reliability and reduced total cost of ownership.
Motor sailors
For those people who have motor sailing boats this engine gives you the benefit of not only virtually silent motoring but also greater reliability, longevity and vastly reduced servicing ie 300 hours for gear box oil and 4,000 hours for the water pump. It also means no petrol on board!
Technical specification
| Motor Type | assisted synchronous reluctance motor |
|---|---|
| Power | Max 50Kw |
| Voltage | 48V |
| Shaft length | Long 20 inches extra long 25 inches |
| Propeller shaft torque | 270Nm |
| Weight | Long 120 kg Extra Long 126kg |
| Trim/ Tilt | Hydraulic |
| Max tilting angle | 65 degrees |
| ISCAD technology | YES |
| Global Support | YES |
| 3rd Party Battery Compatible | YES |
| LED display | YES |
| Classed as low voltage | YES |
| Service cycle gearbox oil | 300 hours |
| Service-cycle water pump | 4,000 hours |
| Remote Diagnostics | Yes |
